Product Summary

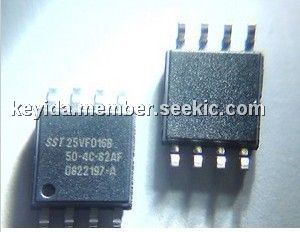

The SST25VF016B-50-4C-S2AF is a SPI serial flash. It features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF016B-50-4C-S2AF is enhanced with improved operating frequency and even lower power consumption than the original SST25VFxxxA devices. It is manufactured with the proprietary of SST, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.
Parametrics
SST25VF016B-50-4C-S2AF absolute maxing ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential: -0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential: -2.0V to VDD+2.0V; (5)Package Power Dissipation Capability (TA = 25℃): 1.0W; (6)Surface Mount Solder Reflow Temperature: 260℃ for 10 seconds; (7)Output Short Circuit Current: 50mA.
Features
SST25VF016B-50-4C-S2AF features: (1)Single Voltage Read and Write Operations: 2.7-3.6V; (2)Serial Interface Architecture: SPI Compatible: Mode 0 and Mode 3; (3)High Speed Clock Frequency: 50 MHz; (4)Superior Reliability: Endurance: 100,000 Cycles(typical); Greater than 100 years Data Retention; (5)Low Power Consumption: Active Read Current: 10 mA(typical); Standby Current: 5 μA (typical); (6)Flexible Erase Capability: Uniform 4 KByte sectors; Uniform 32 KByte overlay blocks; Uniform 64 KByte overlay blocks; (7)Fast Erase and Byte-Program: Chip-Erase Time: 35 ms(typical); Sector-/Block-Erase Time: 18 ms (typical); Byte-Program Time: 7μs (typical).

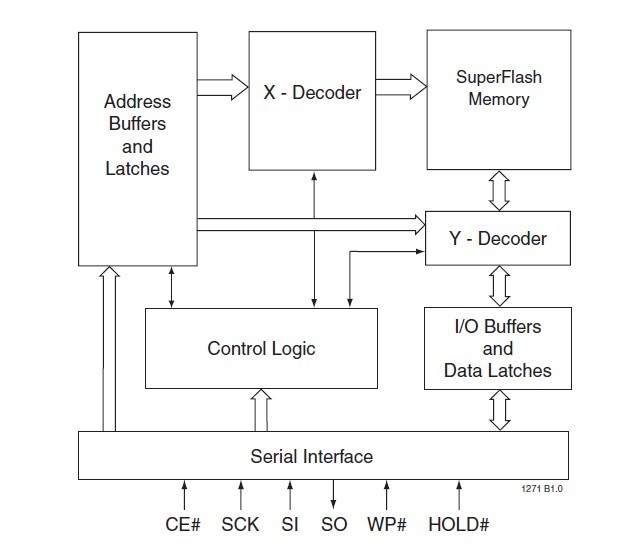

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SST25VF016B-50-4C-S2AF |
Microchip Technology |
Flash 16M Serial Flash 50MHz |
Data Sheet |
|
|
||||||||||||
 |
SST25VF016B-50-4C-S2AF OLD SST P/N |
Microchip Technology |
Flash 16M Serial Flash 50MHz |
Data Sheet |
Negotiable |
|
||||||||||||
|
SST25VF016B-50-4C-S2AF-DD062 |
Microchip Technology |
Flash 16M Serial Flash 50MHz |
Data Sheet |
|
|
||||||||||||
|
SST25VF016B-50-4C-S2AF-T |
Microchip Technology |
Flash 16M (2Mx8) 50MHz 2.7-3.6V Commercial |
Data Sheet |
|
|
||||||||||||
|
SST25VF016B-50-4C-S2AF-T OLD SST P/N |
Microchip Technology |
Flash 16M (2Mx8) 50MHz 2.7-3.6V Commercial |
Data Sheet |
Negotiable |
|
||||||||||||
