Product Summary

The TORX176 is a fiber optic receiving module for digital audio equipment.

Parametrics

TORX176 absolute maximum ratings: (1)Storage Temperature Tstg: -40 to 70 ℃; (2)Operating Temperature Topr: -20 to 70 ℃; (3)Supply Voltage VCC: -0.5 to 7 V; (4)Low Level Output Current IOL: 20 mA; (5)High Level Output Current IOH: -1 mA; (6)Soldering Temperature Tsol: 260 (Note 1) ℃.

Features

TORX176 features: (1)Conform to JEITA Standard CP.1201 (For Digital Audio Interfaces including Fiber Optic inter-connections); (2)TTL Interface; (3)ATC (Automatic Threshold Control) Circuit is used for stabilized output at a wide range of optical power level; (4)A self-tapping hole for easy attachment to the panel of Audio Equipment.

Diagrams

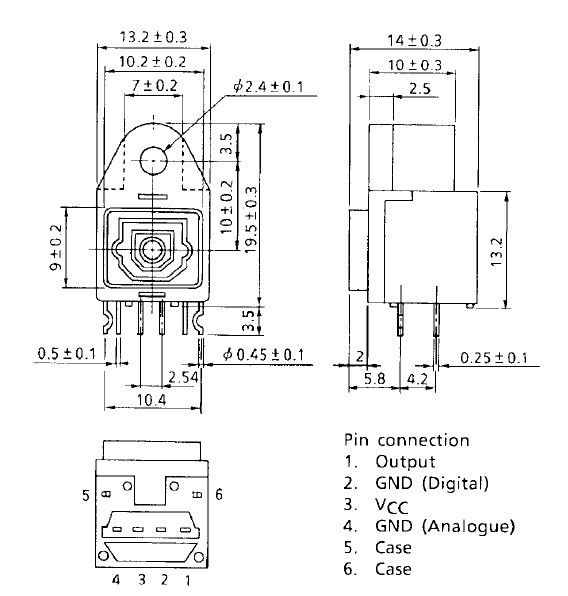

TORX176 dimensions
