Product Summary

The US6J2TR is a silicon P-Channel MOSFET.

Parametrics

US6J2TR absolute maximum ratings: (1)Drain-source voltage VDSS: -20V; (2)Gate-source voltage VGSS: ±12V; (3)Drain current continuous ID: ±1A; (4)Source current continuous IS: -0.4A; (5)Total power dissipation PD: 1.0W; (6)Channel temperature Tch: 150℃; (7)Range of strage temperature Tstg: -55 to 150℃.

Features

US6J2TR features: (1)Gate-source leakage IGSS: ±10μA; (2)Drain-source breakdown voltage V(BR)DSS: -20V; (3)Zero gate voltage drain current IDSS: -1μA; (4)Gatea threshold voltage VGS(th): -0.7V to -2.0V; (5)Forward transfer admittance: 0.7S; (6)Input capacitance Ciss: 150pF; (7)Output capacitance Coss: 20pF; (8)Reverse transfer capacitance Crss: 20pF.

Diagrams

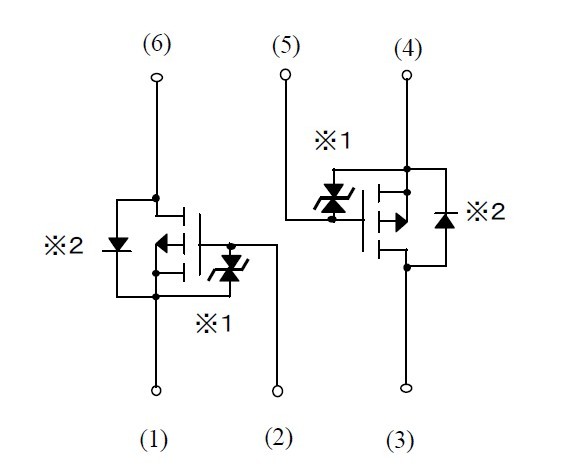

US6J2TR INNER CIRCUIT
