Product Summary

SKM400GB12T4 is fast IGBT4 modules. There are typical applications include AC inverter drives, UPS, and Electronic welders at fsw up to 20 kHzs.What is more, case temperature limited to Tc = 125°C max, recomm. Top from -40 to +150°C, product rel. results valid for Tj = 150°. This is an electrostatic discharge sensitive device (ESDS), international standard IEC 60747-1.

Parametrics

Absolute Maximum Ratings: (1)VCES: 1200 V; (2)IC: 618 A, when the operation condition is Tj = 175 °C, Tc = 25 °C; (3)IC: 475 A, when the operation condition is Tj = 175 °C, Tc = 80 °C ; (4)ICnom: 400 A; (5)ICRM: 1200 A, when the operation condition is ICRM = 3xICnom ; (6)VGES: -20 to 20 V; (7)tpsc: 10 μs, when the operation condition is VCC = 800 V, VGE ≤ 15 V, VCES ≤ 1200 V, Tj = 150 °C ; (8)Tj: -40 to 175 °C; (9)IF: 440 A, when the operation condition is Tj = 175 °C, Tc = 25 °C; (10)IF: 329 A, when the operation condition is Tj = 175 °C, Tc = 80 °C; (11)IFnom: 400 A; (12)IFRM: 1200 A, IFRM = 3xIFnom; (13)IFSM: 1980 A, when the operation condition is tp = 10 ms, sin 180°, Tj = 25 °C; (14)Tj: -40 to 175 °C; (15)It(RMS): 500 A; (16)Tstg: -40 to 125 °C; (17)Visol: 4000 V, when the operation condition is AC sinus 50Hz, t = 1 min.

Features

Features: (1)VCE(sat) with positive temperature coefficient; (2)High short circuit capability, self limiting to 6 x Icnom; (3)Fast & soft inverse CAL diodes; (4)Large clearance (10 mm) and creepage distances (20 mm); (5)Isolated copper baseplate using DBC Technology (Direct Copper Bonding).

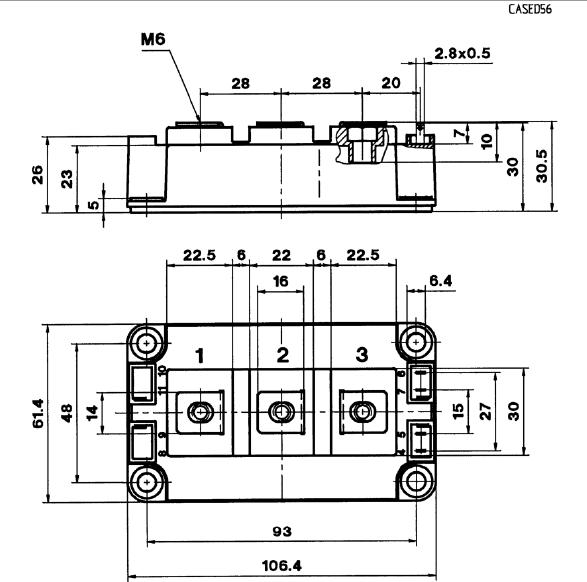

Diagrams
