Product Summary

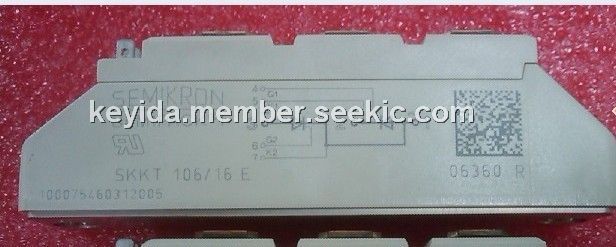

The SKKT106/16E is a Thyristor / Diode Module. The applications of it are DC motor controls, AC motor soft starters, temperature control, professional light dimming.

Parametrics

SKKT106/16E general specifications: (1)IRMS:200/3*140A; (2)ITAV: 106A; (3)VT:max.1.65V; (4)VT(TO):max.0.9V; (5)I2T:max.2mΩ; (6)IDD;IRD:20mA; (7)VGT:min.3V; (8)tgd:1us; (9)tgr:1us; (10)tq:100us; (11)IH:150/250mA; (12)IL:300/600mA.

Features

SKKT106/16E features: (1)heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no. E63532.

Diagrams

SKKT106/16E block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SKKT106/16E
SKKT106/16E

Other


Data Sheet

Negotiable
