Product Summary

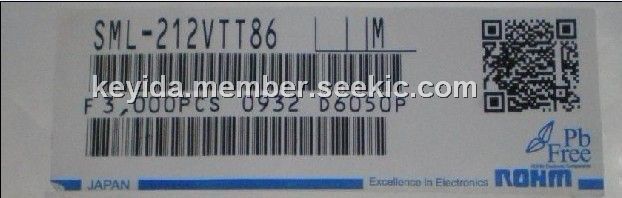

The SML-212VTT86 is a LED.

Parametrics

SML-212VTT86 absolute maximum ratings: (1)emitting color: red; (2)power dissipation, PD: 75mW; (3)forward current, IF: 30mA; (4)peak forward curretn, IFP: 60mA; (5)reverse voltage, VR: 4V; (6)operating temperature, Topr: -30 to 85℃; (7)storage temperature, Tstg: -40 to 85℃.

Features

SML-212VTT86 features: (1)resion color: transparent colorless; (2)forward voltage, VF: 2.05V typ; (3)IF: 20mA; (4)reverse current, IR: 100μA; (5)VR: 4V; (6)light wavelength, peak, λp: 639nm typ; △λ: 20nm typ; (7)IF: 20mA; (8)brightness, IV: 22mcd min; 63mcd typ; (9)IF: 20mA.

Diagrams

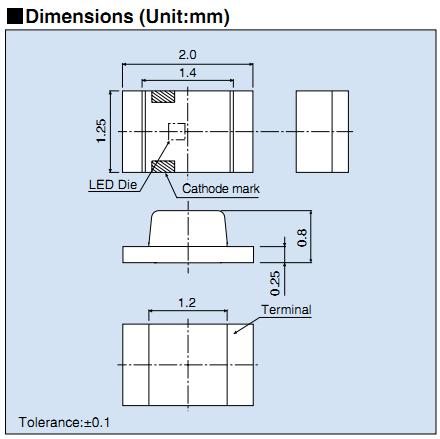

SML-212VTT86 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SML-212VTT86
SML-212VTT86

ROHM Semiconductor

Standard LED - SMD INDIUM RED SMD TRANS LENS

Data Sheet

0-3000: $0.15
3000-6000: $0.14
6000-12000: $0.14
