Product Summary

The RTF010P02TL is a DC-DC Converter.

Parametrics

RTF010P02TL absolute maximum ratings: (1)Drain-source voltage, VDS: -20V; (2)Gate-source voltage, VGSS: ±12V; (3)Drain current, continuous, ID: ±1A; pulsed, IDP: ±4A; (4)source current (body diode), continuous, IS: -0.4A; pulsed, ISP: -4A; (5)Total power dissipation, PD: 0.8W; (6)Channel temperature, Tch: 150℃; (7)Range of Storage temperature, Tstg: -55 to 150℃.

Features

RTF010P02TL features: (1)Low on-resistance. (80mΩ at 2.5V); (2)High power package; (3)High speed switching; (4)Low voltage drive. (2.5V).

Diagrams

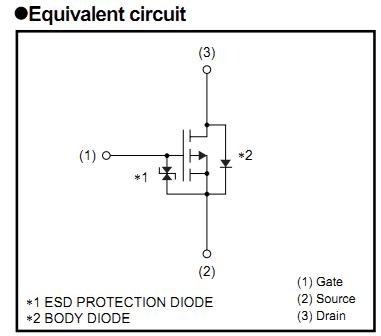

RTF010P02TL equivalent circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RTF010P02TL
RTF010P02TL
ROHM Semiconductor
MOSFET P-CH 20V 1A TUMT3
Data Sheet
0-3000: $0.11
3000-6000: $0.10
6000-12000: $0.10
