Product Summary

The RTQ040P02TR is a 2.5V Drive Pch MOS FET. It is suitable for DC-DC converter.

Parametrics

RTQ040P02TR absolute maximum ratings: (1)Drain-source voltage, VDSS: -20V; (2)Gate-source voltage, VGSS: ±12V; (3)Drain current, contimuous, ID: ±4.0A; pulsed, IDP: ±16A; (4)source current (body diode), continuous, IS: -1A; pulsed, ISP: -16A; (5)Total power dissipation, PD: 1.25W; (6)Channel temperature, Tch: 150℃; (7)Range of Storage temperature, Tstg: -55 to 150℃.

Features

RTQ040P02TR features: (1)Low on-resistance. (60mΩ at 2.5V); (2)High power package; (3)High speed switching; (4)Low voltage drive. (2.5V).

Diagrams

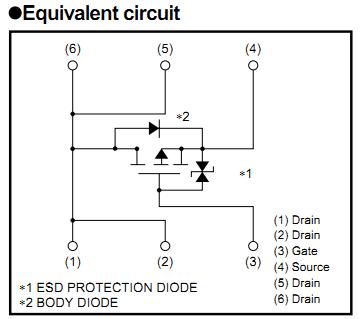

RTQ040P02TR equivalent circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RTQ040P02TR
RTQ040P02TR

ROHM Semiconductor

MOSFET P-CH 20V 4A TSMT6

Data Sheet

0-3000: $0.13
3000-6000: $0.12
6000-12000: $0.11
