DG412FDY

Product Summary

The DG412FDY is quad, single-pole/single-throw (SPST), fault-protected analog switches. It is pin compatible with the industry-standard nonprotected DG412FDY. This new switch feature fault-protected inputs and Rail-to-Rail signalhandling capability. All terminals are protected from overvoltage faults up to ±36V with power on and up to ±40V with power off. During a fault condition, the COM, NO, or NC terminal becomes an open circuit and only microamperes of leakage current flow from the source. On-resistance is 35Ω (max) and is matched between switches to 1.5Ω (max) at +25°C. The DG412FDY has four normally open (NO) switches. These CMOS switches operate with dual power supplies ranging from ±4.5V to ±20V or a single supply between +9V and +36V. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring both TTL and CMOS logic compatibility when using ±15V or a single +12V supply. For supply voltages of ±5V, +5V, and +3V, refer to the MAX4712 data sheet.

Parametrics

Absolute maximum ratings:(1)(Voltages Referenced to GND) V+: -0.3V to +44V; (2)(Voltages Referenced to GND)V- : -44V to +0.3V; (3)(Voltages Referenced to GND)V+ to V-: -0.3V to +44V; (4)(Voltages Referenced to GND)IN_ : (V- - 0.3V) to (V- + 40V); (5)(Voltages Referenced to GND)NO_, NC_ to COM_ (Note1) : -40V to +40V; (6)COM_, NO_, NC_ Voltage with Power On (Note 1): -36V to +36V; (7)COM_, NO_, NC_ Voltage with Power Off (Note 1): -40V to +40V; (8)Continuous Current (any terminal): ±30mA; (9)Peak Current COM_, NO_, NC_(pulsed at 1ms, 10% duty cycle): ±100mA; (10)16-Pin TSSOP (derate 9.4mW/°C above +70°C): 755mW; (11)16-Pin SO (derate 8.7mW/°C above +70°C): 696mW; (12)16-Pin Plastic DIP (derate 10.53mW/°C above +70°C) : 842mW; (13)Operating Temperature Range: -40°C to +85°C; (14)Junction Temperature: +150°C; (15)Storage Temperature Range: -65°C to +160°C; (16)Lead Temperature (soldering, 10s): +300°C.

Features

Features:(1)No Power-Supply Sequencing Required; (2)Rail-to-Rail Signal Handling; (3)All Switches Off with Power Off; (4)All Switches Off when V+ is Off and V- is On; (5)±40V Fault Protection with Power Off; (6)±36V Fault Protection with ±15V Supplies; (7)Control Line Fault Protection from V- - 0.3V to V- + 40V; (8)Pin Compatible with Industry-Standard DG411/DG412/DG413; (9)20ns (typ) Fault Response Time; (10)35Ω (max) RON with ±15V Supplies; (11)±4.5V to ±20V Dual Supplies; (12)+9V to +36V Single Supply; (13)TTL- and CMOS-Compatible Logic Inputs with ±15V or Single +9V to +15V Supplies.

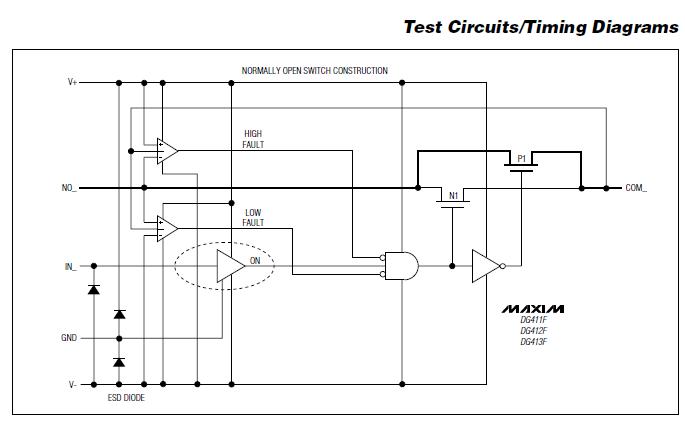

Diagrams
