Product Summary

The RHP020N06T100 is a 4V Drive Nch MOSFET. It is suitable for switching.

Parametrics

RHP020N06T100 absolute maximum ratings: (1)Drain-source voltage, VDSS: 60V; (2)Gate-source voltage, VGSS: ±20V; (3)Drain current, continuous, ID: ±2A; pulsed, IDP: ±8A; (4)source current, continuous, IS: 2A; pulsed, ISP: 8A; (5)Total power dissipation, PD: 500mW; (6)Channel temperature, Tch: 150℃; (7)Range of storage temperature, Tstg: -55 to 150℃.

Features

RHP020N06T100 features: (1)Low On-resistance; (2)High speed switching; (3)Wide SOA.

Diagrams

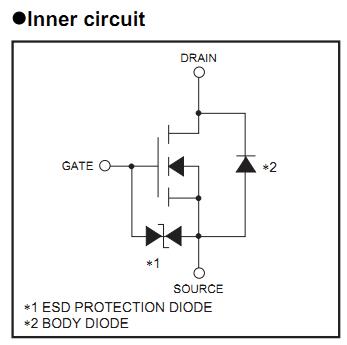

RHP020N06T100 inner circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RHP020N06T100
RHP020N06T100

ROHM Semiconductor

MOSFET N-CH 60V 200MA

Data Sheet

0-1: $0.44
1-25: $0.35
25-100: $0.27
100-500: $0.18
500-1000: $0.16
