Product Summary
The M25P80-VMN6TP is an 8 Mbit Serial Flash memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction. The M25P80-VMN6TP is organized as 16 sectors, each containing 256 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 4096 pages, or 1,048,576 bytes. The whole memory can be erased using the Bulk Erase instruction, or a sector at a time, using the Sector Erase instruction. In order to meet environmental requirements, Numonyx offers the M25P80-VMN6TP in ECOPACK packages. ECOPACK packages are Lead-free and RoHS compliant.
Parametrics
M25P80-VMN6TP absolute maximum ratings: (1)TSTG, Storage temperature: –65 to 150℃; (2)VIO, Input and output voltage (with respect to ground): –0.6 to VCC + 0.6 V; (3)VCC, Supply voltage: –0.6 to 4.0 V; (4)VESD, Electrostatic discharge voltage (Human Body model): –2000 to 2000 V.
Features
M25P80-VMN6TP features: (1)SPI bus compatible serial interface; (2)75 MHz Clock rate (maximum); (3)2.7 V to 3.6 V single supply voltage; (4)8 Mbit of Flash memory; (5)Page Program (up to 256 bytes) in 0.64 ms (typical); (6)Sector Erase (512 Kbit) in 0.6 s (typical); (7)Bulk Erase (8 Mbit) in 8 s (typical); (8)Hardware Write protection: protected area size defined by three non-volatile bits (BP0, BP1 and BP2); (9)Deep Power-down mode 1 μA (typical); (10)Electronic signatures: JEDEC Standard two-byte signature (2014h); Unique ID code (UID) +16 bytes of CFI data; RES instruction one-byte signature(13h) for backward compatibility; (11)More than 100 000 Program/Erase cycles per sector; (12)More than 20 years data retention Packages: ECOPACK (RoHS compliant).

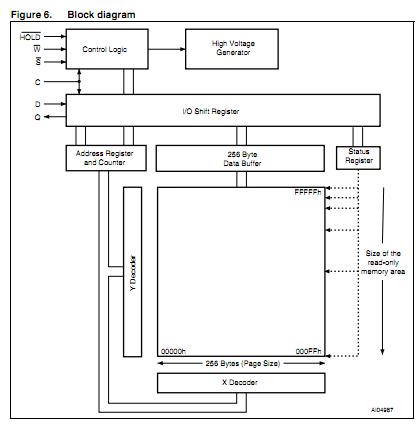

Diagrams
