Product Summary

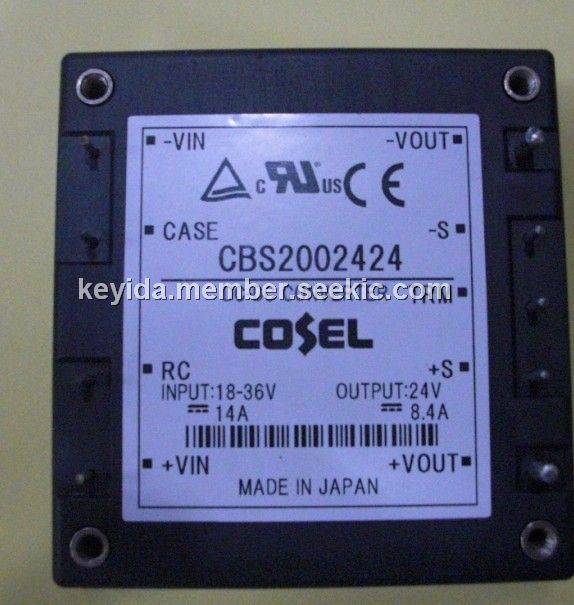

The CBS2002424 is power module with Cosel package. It is characterized by original item with good price,small size,isolated between input-output, overcurrent protection and more. The CBS2002424 is widely used in computers. Its nominal Input is 24 VDC, and its total power is 201.6 W. What is more, the operating Temperature of the product range from -40 to 100 °C.

Parametrics

Specifications:(1)input current:9.66typ; (2)input voltage:dc18 - 36; (3)input efficiency[%]:87typ; (4)output voltage[v]:24; (5)output current[a]:4.20a; (6)output voltage setting[v]:27.60 - 33.60; (7)protection, overcurrent protection: works over 105% of rating and recovers automatically ; (8)safety, agency approvals :ul60950-1, c-ul, en60950-1 ; (9)others, case size/weight :57.9x12.7x61.0mm (wxhxd) / 83g max ;cooling method:conduction cooling (e.g. heat radiation from the aluminum base plate to the attached heat sink) ; (10)max output wattage[w]:201.6.

Features

Features:(1)Series name; (2)Single output; (3)Output wattage; (4)Input voltage:24:DC18 - 36V;48:DC36 - 76V; (5)Output voltage; (6)Optional:R :with Remote ON/OFF Positive logic control;T :with Mounting hole f3.4 thru;FO:with Addition of a Heat sink.

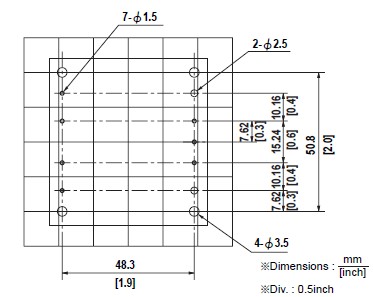

Diagrams
