Product Summary

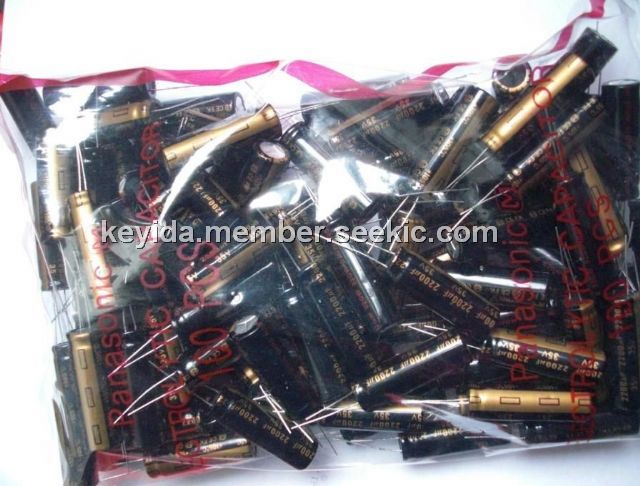

EEUFK1V222L is aluminum electrolytic capacitors. It is featured with low impedance, miniaturization and RoHS directive compliant. After following life test with DC voltage and +105 °C±2 °C ripple current value applied (The sum of DC and ripple peak voltage shall not exceed the rated working voltage), when the capacitors are restored to 20 °C, the capacitors shall meet the limits specified bellow. For the duration, there are φ8: 3000 hours, φ10: 4000 hours, φ12.5 to φ18: 5000 hours.

Parametrics

Specifications:(1)Category Temp. Range: –55 °C to +105 °C; (2)Rated W.V. Range: 6.3 V.DC to 35 V.DC; (3)Nominal Cap. Range: 180 μF to 12000 μF; (4)Capacitance Tolerance: ±20 % (120 Hz/+20 °C); (5)DC Leakage Current: I < 0.01 CV (μA) After 2 minutes; (6)Capacitance change: ±20 % of initial measured value; (7)tan δ: < 200 % of initial specifi ed value; (8)DC leakage current: < initial specifi ed value.

Features

Features: (1)Low impedance (10 % to 30 % less than FC Se ries); (2)Miniaturization (30 % to 40 % less than FC Series); (3)Endurance : 3000 h to 5000 h at +105 °C; (4)RoHS directive compliant.

Diagrams

EEUFM1E821L
EEUFM1E821L
Other

Data Sheet
Negotiable
