Product Summary

The FMS6143CSX Low-Cost Video Filter (LCVF) is intended to replace passive LC filters and drivers with a low-cost integrated device. Three 4th-order filters provide improved image quality compared to typical 2nd or 3rd-order passive solutions. The FMS6143CSX may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal diode clamps and bias circuitry may be used if AC-coupled inputs are required. The applications of FMS6143CSX are: (1)Cable set top boxes; (2)Satellite set top boxes; (3)DVD players; (4)HDTV; (5)Personal Video recorders; (6)Video On demand.

Parametrics

FMS6143CSX absolute maximum ratings: (1)VCC DC Supply Voltage: -0.3 to 6.0 V; (2)Analog and Digital I/O: -0.3 to VCC + 0.3 V; (3)Output Channel: 50 mA.

Features

FMS6143CSX features: (1)Three 4th-order 8MHz (SD) filters; (2)Drives single, AC- or DC-coupled, video loads (2Vpp, 150Ω); (3)Drives dual, AC- or DC-coupled, video loads (2Vpp, 75Ω); (4)Transparent input clamping; (5)AC- or DC-coupled inputs; (6)AC- or DC-coupled outputs; (7)DC-coupled outputs eliminate AC-coupling capacitors; (8)5V only; (9)Robust 8kV ESD protection; (10)Lead-free SOIC-8 package.

Diagrams

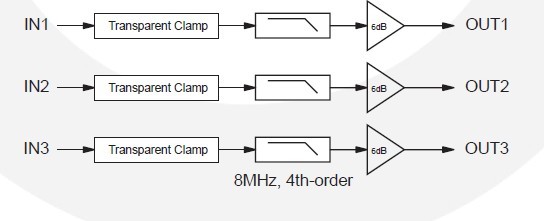

FMS6143CSX block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FMS6143CSX
FMS6143CSX

Fairchild Semiconductor

Video ICs Video Filter Driver

Data Sheet

0-1: $0.34
1-25: $0.29
25-100: $0.24
100-250: $0.22
FMS6143CSX_NA3M248
FMS6143CSX_NA3M248

Fairchild Semiconductor

Buffers & Line Drivers Video Filter Driver

Data Sheet

Negotiable
FMS6143CSX_NS5C002
FMS6143CSX_NS5C002

Fairchild Semiconductor

Video ICs Video Filter Driver

Data Sheet

0-1730: $0.48
1730-2000: $0.45
2000-2500: $0.45
2500-5000: $0.43
