Product Summary

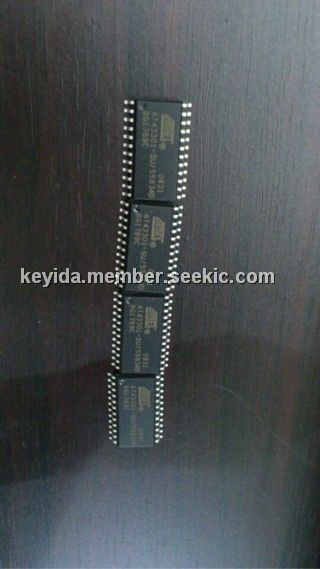

The AT43301-SU is a 5-port USB hub chip supporting one upstream and four downstream ports. The AT43301-SU connects to an upstream hub or host/root hub via Port0, while the other ports connect to external downstream USB devices. The hub re-transmits the USB differential signal between Port0 and Ports[1:4] in both directions. The AT43301-SU is designed for very low-cost bus-powered or self-powered hub applications and is available in a 24-lead SOIC and a 32-lead LQFP packages. The 32-lead version of the AT43301-SU has a 48 MHz clock input. The AT43301-SU supports the 12 Mb/s full speed as well as 1.5 Mb/s slow speed USB transactions. To reduce EMI, the AT43301-SU oscillator frequency is 6 MHz even though some internal circuitry operates at 48 MHz.
Parametrics
AT43301-SU absolute maximum ratings: (1)VCC5 5V Power Supply: 5.5 V; (2)VI DC Input Voltage: -0.3V to VCEXT + 0.3V; (3)VO DC Output Voltage: -0.3 to VCEXT + 0.3V; (4)TO Operating Temperature: -40 +125 ℃; (5)TS Storage Temperature: -65 +150 ℃.
Features
AT43301-SU features: (1)Full Compliance with USB Spec Rev 1.1; (2)Four Downstream Ports; (3)Full-speed and Low-speed Data Transfers; (4)Bus-powered Controller; (5)Bus-powered or Self-powered Hub Operation; (6)Port Overcurrent Monitoring; (7)Port Power Switching; (8)5V Operation with On-chip 3.3V Regulator; (9)24-lead SOIC and 32-lead LQFP.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AT43301-SU |
Atmel |
USB Interface IC USB FOUR PORT HUB GANGED |
Data Sheet |
Negotiable |
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
AT431 |
NKK Switches |

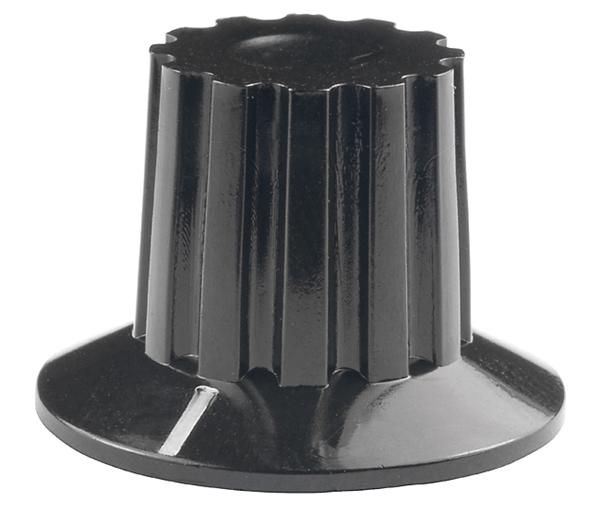

Knobs & Dials BLACK ROTARY KNOB |
Data Sheet |
|
|
|||||||||||||
AT43101 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
AT432 |
NKK Switches |
Knobs & Dials BLK SM ROTARY KNOB |
Data Sheet |
|
|
|||||||||||||
AT43301 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
AT43301-AC |
Atmel |
USB Interface IC LQFP COM TEMP |
Data Sheet |
Negotiable |
|
|||||||||||||
AT43301-AU |
Atmel |
USB Interface IC USB FOUR PORT HUB GANGED |
Data Sheet |
Negotiable |
|
