Product Summary

The FP40R12KT3 is an IGBT module.

Parametrics

FP40R12KT3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector current, IC nom: 40A when Tc=80℃; IC: 55A when Tc=25℃; (3)repetitive peak collector current, ICRM: 80A; (4)total power dissipation, Ptot: 210W; (5)gate-emitter peak votlage, VGES: +/-20V.

Features

FP40R12KT3 features: (1)repetitive peak reverse voltage, VRRM: 1200V; (2)DC forward current, IF: 40A; (3)repetitive peak forward current, IFRM: 80A; (4)i2t value, I2t: 320A2s.

Diagrams

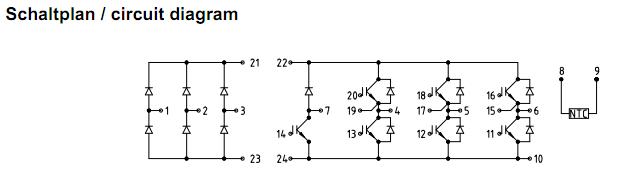

FP40R12KT3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FP40R12KT3
FP40R12KT3

Infineon Technologies

IGBT Modules N-CH 1.2KV 55A

Data Sheet

0-6: $66.95
6-10: $60.26
FP40R12KT3G
FP40R12KT3G

Infineon Technologies

IGBT Modules N-CH 1.2KV 55A

Data Sheet

0-8: $60.05
8-10: $57.47
