Product Summary
The IRFP9240 Power MOSFET from Vishay provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247 package of IRFP9240 is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because its isolated mounting hole. The IRFP9240 also provides greater creepage distances between pins to meet the requirements of most safety specifications.
Parametrics
IRFP9240 absolute maximum ratings: (1)Continuous Drain Current, VGS @ -10 V: -12 A; (2)Pulsed Drain Currenta: -48 A; (3)power dissipation: 150 W; (4)Linear Derating Factor: 1.2 W/℃; (5)gate-to-source voltage: ±20V; (6)Single Pulse Avalanche Energy: 790 mJ; (7)Repetitive Avalanche Energy: 15 mJ; (8)Maximum Power Dissipation TC = 25 ℃: 150 W; (9)Peak Diode Recovery dV/dt: -5.0 V/ns; (10)Operating Junction and Storage Temperature Range: - 55 to + 150 ℃.
Features
IRFP9240 features: (1)Dynamic dV/dt Rating; (2)Repetitive Avalanche Rated; (3)Isolated Central Mounting Hole; (4)Fast Switching; (5)Ease of Paralleling; (6)Simple Drive Requirements.

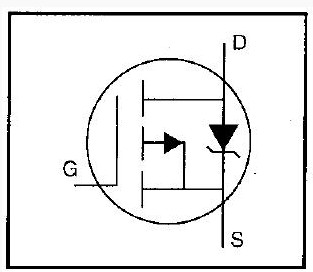

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() IRFP9240 |
![]() Vishay/Siliconix |
![]() MOSFET P-Chan 200V 12 Amp |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() IRFP9240, SiHFP9240 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() IRFP9240PBF |
![]() Vishay/Siliconix |
![]() MOSFET P-Chan 200V 12 Amp |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() IRFP9240_R4941 |
![]() Fairchild Semiconductor |
![]() MOSFET TO-247 |
![]() Data Sheet |
![]() Negotiable |
|
