Product Summary

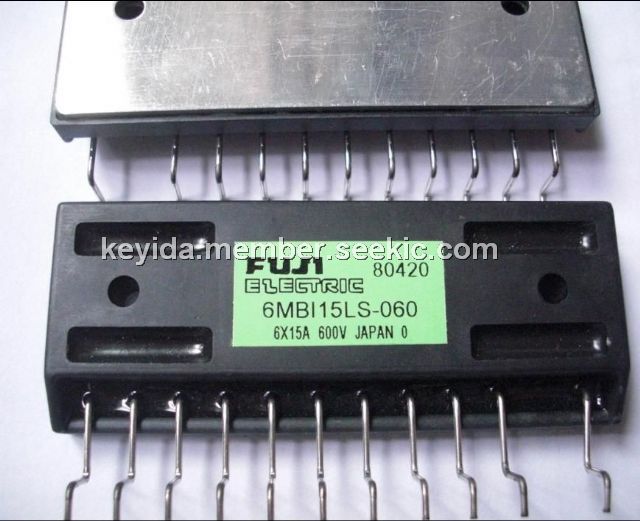

6MBI15LS-060 is a 6pack IGBT module belongs to L series. With an operation voltage of 600V and current of 15A, it is widely applied as inverter for motor drive amplifier, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines, such as welding machines. The thermal resistance can test under three conditions, such as IGBT modules, diode and with thermal compound.

Parametrics

Absolute Maximum Ratings: (1) collecter-emitter voltage, Vces: 600V; (2) Gate emitter voltage, Vges: ±20V; (3) Collecter current, Ic: 15V; (4) MAX POWER dissipation, Pc: 50W; (6) Operating voltage, Tj: 150℃; (7) storage temperature, Tstg: -40 to 125℃; (8) ISOLATION VOLTAGE, Vis: 2000V; (9)screw torque: 17kg.cm.

Features

Features: (1) high speed switching; (2) low speed switching; (3) compact packages; (3) PCB mounting flexibility.
