Product Summary

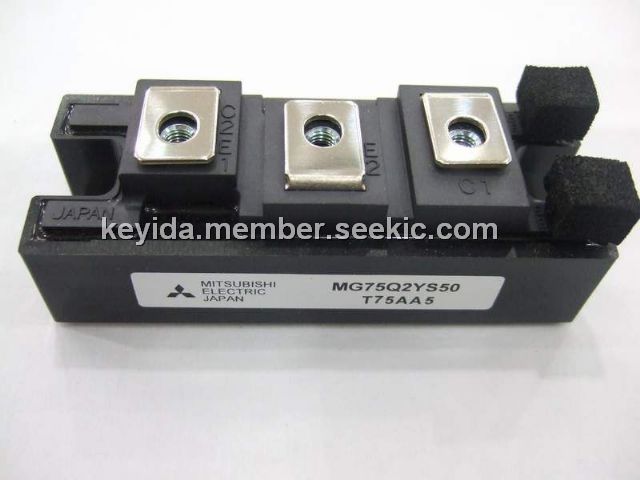

The MG75Q2YS50 is a Silicon N Channel IGBT module. This module is generally applied to high powr swith and motor control. It is intended for usage in general electronics applications (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc.). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments, medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this document shall be made at the customer’s own risk.
Parametrics
Absolute maximum ratings:(1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, DC, IC(25°C / 80°C): 100 / 75A; (4)Collector current, 1ms, ICP (25°C / 80°C), 200/150A; (5)Forward current, DC, IF: 75A; (6)Forward current, 1ms, IFM, 150A; (7)Collector power dissipation(Tc = 25°C), PC, 600W; (8)Junction temperature, Tj: 150°C; (9)Storage temperature range, Tstg: 40 ~ 125°C; (10)Isolation voltage, VIsol: 2500(AC 1minute)V; (11)Screw torque (Terminal / mounting): 3/3N·m.
Features
Features:(1)High input impedance; (2)High speed : tf = 0.3 μs (Max) @Iinductive load; (3)Low saturation voltage: VCE (sat) = 3.6 V(Max); (4)Enhancement-mode; (5)Includes a complete half bridge in one package; (6)The electrodes are Isolated from case.

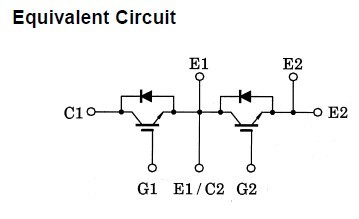

Diagrams
 |
