Product Summary

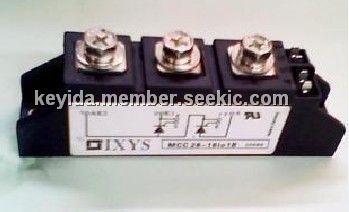

The MCC220-16I01 is a thristor module. The applications of the device include motor control, power converter, heat and temperature control for industrial furnaces and chemical processes, lighting control and contactless switches.

Parametrics

MCC220-16I01 absolute maximum ratings: (1)ITRMS, IFRMS: 400V; (2)ITAVM, IFAVM: 250A; (3)ITSM, IFSM: 8500A; (4)PGAV: 20W; (5)VRGM: 10V; (6)TVJ: -40 to 140℃; (7)TVJM: 140℃; (8)Tstg: -40 to 125℃; (9)VISOL: 3000V; (10)weight: 320g.

Features

MCC220-16I01 features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V~; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.

Diagrams

MCC220-16I01 block diagram
