Product Summary

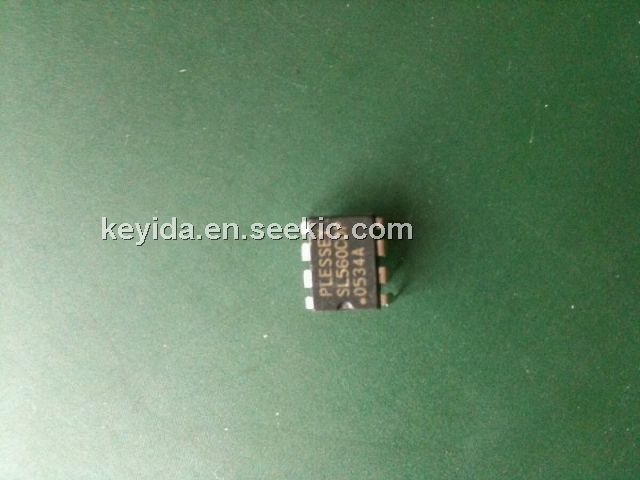

This monolithic circuit contains three very high performance transistors and associated biasing components in an eight-lead TO-5 package forming a 300MHz Iow noise amplifier .The configuration employed permits maximum flexibility with minimum use of external components. The SL560C is a general purpose low noise ,high frequency gain block.

Features

1.Gain up to 40db
2.Noise Figures less than 2dB(Rs 200ohm)
3.Bandwidth 300Mhz
4.Supply Voltage 2-15V (Depending on Configuration)
5.Low Power Consumption
