Product Summary

The RB060M-30TR is a Schottky barrier diode. It is suitable for General rectification.

Parametrics

RB060M-30TR absolute maximum ratings: (1)Storage temperature, Tstg: -55 to 150℃; (2)Junction temperature, Tj: 150℃; (3)Forward current surge peak (60Hz/1cyc), IFSM: 55A; (4)Reverse voltage (repetitive peak), VRM: 30V; (5)Reverse voltage (DC), VR: 30V; (6)Average rectified forward current, IO: 2A.

Features

RB060M-30TR features: (1)Small power mold type.(PMDU); (2); (3)High reliability.

Diagrams

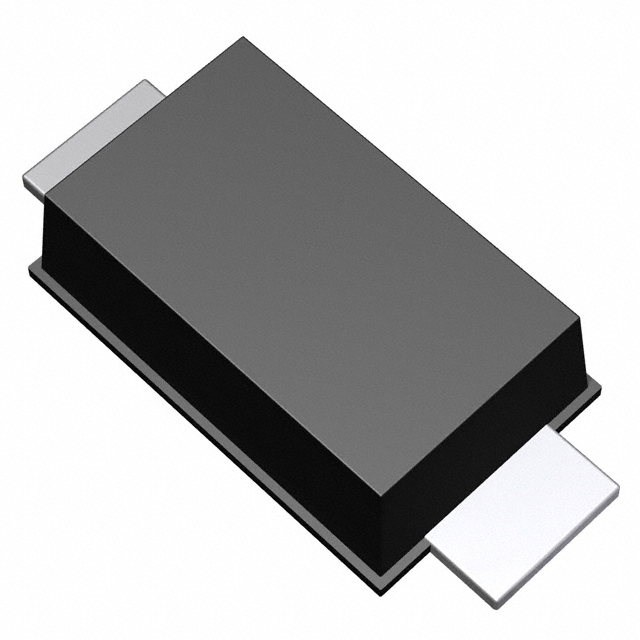

RB060M-30TR structure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RB060M-30TR
RB060M-30TR

ROHM Semiconductor

Schottky (Diodes & Rectifiers) SCHOTTKYPMDUT/R

Data Sheet

0-1: $0.33
1-25: $0.26
25-100: $0.19
100-500: $0.12
