Product Summary

The FF400R12KT3 is an IGBT module.

Parametrics

FF400R12KT3 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1200V; (2)DC-collector curretn, IC: 580A; (3)repetitive peak collector curretn, ICRM: 800A; (4)total power dissipation, Ptot: 2000W; (5)gate-emitter peak voltage, VGES: ±20V.

Features

FF400R12KT3 features: (1)forward voltage, VF: 1.65V; (2)peak reverse recovery current, IRM: 480A; (3)recovered charge, QF: 80μC; (4)reverse recovery energy, Erec: 37.0mJ; (5)thermal resistance, junction to case, RthJC: 0.11K/W.

Diagrams

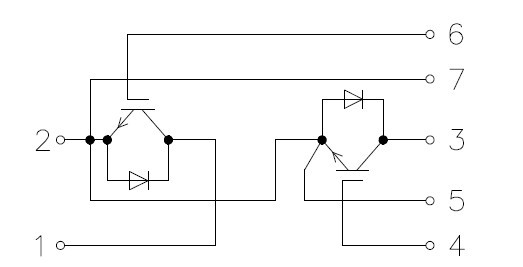

FF400R12KT3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

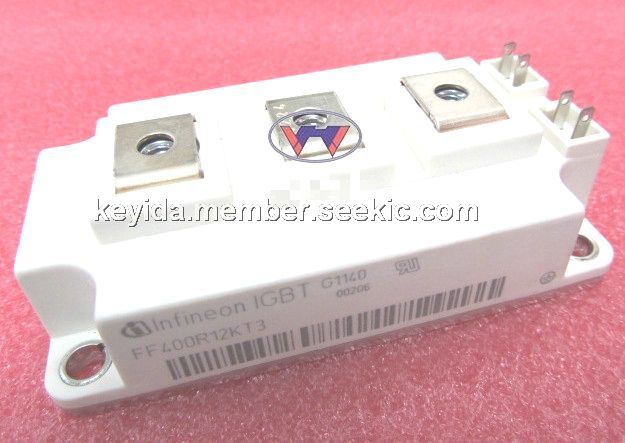

FF400R12KT3
FF400R12KT3

Infineon Technologies

IGBT Modules N-CH 1.2KV 580A

Data Sheet
