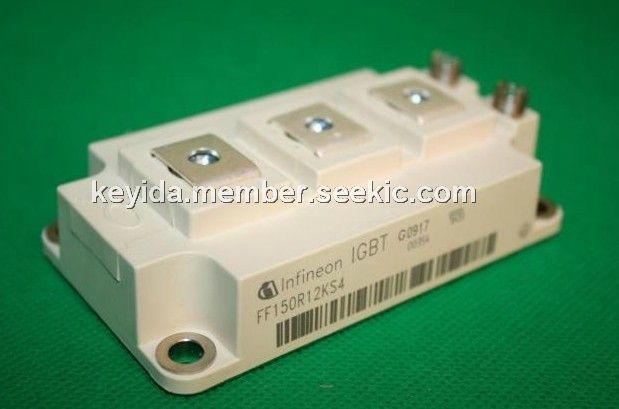

Product Summary

The FF150R12KS4 is a 62mm IGBT module with the fast IGBT2 for high-frequency switching. Applications of the FF150R12KS4 are: (1)Medical applications; (2)Motor drives; (3)Resonant inverter applications; (4)Servo drives; (5)UPS systems.

Parametrics

FF150R12KS4 absolute maximum ratings: (1)collector emitter voltage: 1200V; (2)DC-collector current: 150A; (3)repetitive peak collector current: 300A; (4)total power dissipation: 1250W; (5)gate emitter peak voltage: ±20V.

Features

FF150R12KS4 features: (1)collector emitter saturation voltage: 3.20V; (2)gate threshold voltage: 5.5V; (3)gate charge: 1.60μC; (4)internal gate resistor: 2.5Ω; (5)input capacitance: 11nF; (6)reverse transfer capacitance: 0.50nF; (7)collector emitter cut off current: 5.0-mA; (8)gate emitter leakage current: 400nA; (9)SC data: 950A.

Diagrams

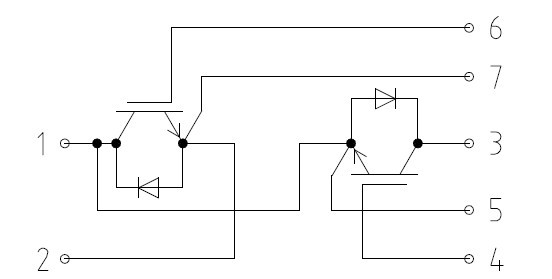

FF150R12KS4 diagram
