Product Summary

The MAX? II family of instant-on, non-volatile CPLDs is based on a 0.18-μm,
6-layer-metal-flash process, with densities from 240 to 2,210 logic elements (LEs) (128
to 2,210 equivalent macrocells) and non-volatile storage of 8 Kbits. MAX II devices
offer high I/O counts, fast performance, and reliable fitting versus other CPLD
architectures. Featuring MultiVolt core, a user flash memory (UFM) block, and
enhanced in-system programmability (ISP), MAX II devices are designed to reduce
cost and power while providing programmable solutions for applications such as bus
bridging, I/O expansion, power-on reset (POR) and sequencing control, and device
configuration control

Features

■ Low-cost, low-power CPLD
■ Instant-on, non-volatile architecture
■ Standby current as low as 25 μA
■ Provides fast propagation delay and clock-to-output times
■ Provides four global clocks with two clocks available per logic array block (LAB)
■ UFM block up to 8 Kbits for non-volatile storage
■ MultiVolt core enabling external supply voltages to the device of either
3.3 V/2.5 V or 1.8 V
■ MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, and 1.5-V logic levels
■ Bus-friendly architecture including programmable slew rate, drive strength,
bus-hold, and programmable pull-up resistors

■ Schmitt triggers enabling noise tolerant inputs (programmable per pin)
■ I/Os are fully compliant with the Peripheral Component Interconnect Special
Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2 for 3.3-V
operation at 66 MHz
■ Supports hot-socketing
■ Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry
compliant with IEEE Std. 1149.1-1990
■ ISP circuitry compliant with IEEE Std. 1532



Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

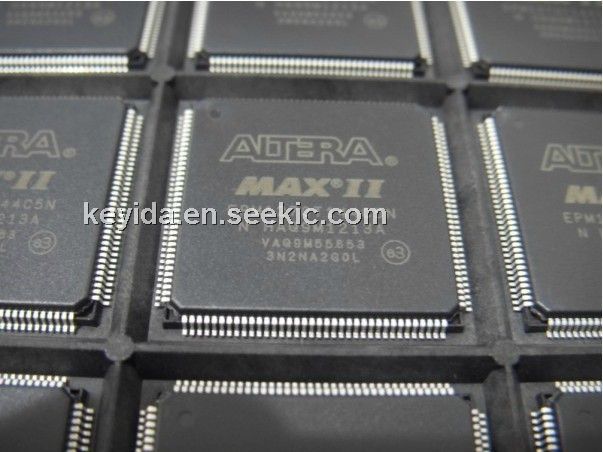

EPM1270T144C5
EPM1270T144C5


IC MAX II CPLD 1270 LE 144-TQFP

Data Sheet

0-1: $14.98
EPM1270T144C5N
EPM1270T144C5N


IC MAX II CPLD 1270 LE 144-TQFP

Data Sheet

0-1: $13.62
