Product Summary

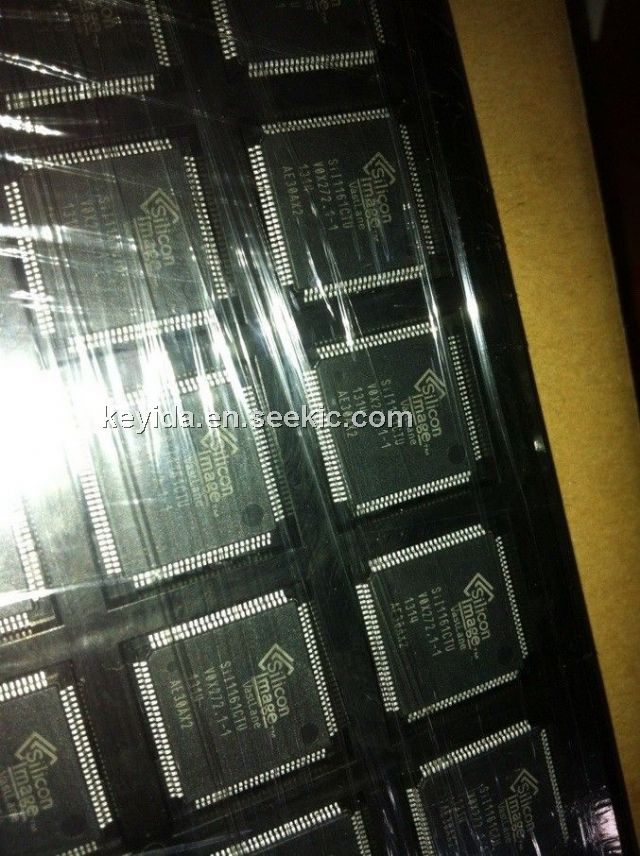

The SII 1161 receiver uses Paneilink Digital technology to support high-resolution displays up to UXGA (25-165MHz) . This receiver supports up to true color panels (24 bits per pixel ,16M colors) with both one and two pixels per clock

Parametrics

Application Information

To obtain the most updated Application Notes and other useful information for your design



Features

1. Supports 10 meter cables at UXGA speed

2.IC port for dynamic optimization of settings to compensate for long cables and /or poor quality transmitters

3.Flexible output drive controls to optimiza timings for all possible configurations

4.3.3V operation

5. Time staggered data output for reduced ground bounce and lower EMI

6.Sync Detect feature for DVI "Hot Plugging"
