Product Summary

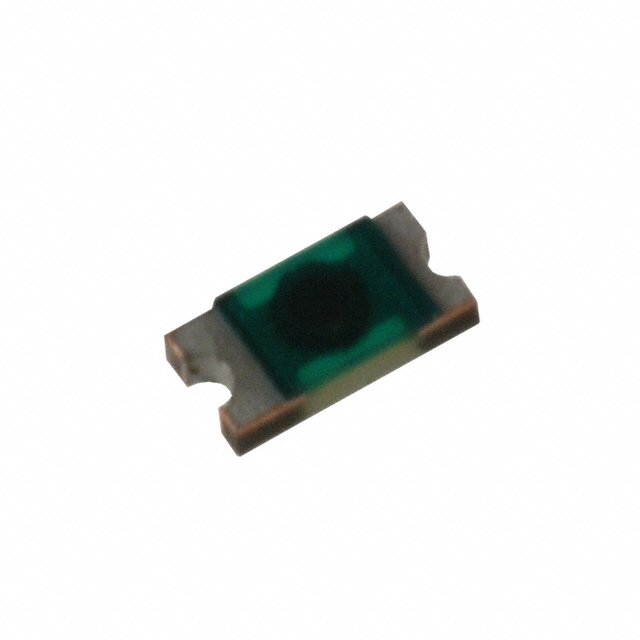

The PGB1010603MR/NR is a PulseGuard ESD Suppressor. It can help protect sensitive electronic equipment against electrostatic discharge (ESD). The PGB1010603MR/NR supplements the on-chip protection of integrated circuitry and is best suited for low-voltage, high-speed applications where low capacitance is important. Data ports utilizing such high-speed protocols as USB 2.0, IEEE1394, HDMI and DVI can benefit from this new technology. The applications of the device include HDTV hardware, laptop/desktop computer, network hardware, computer peripherals, digital camera, external storage, set-top box and antenna.

Parametrics

PGB1010603MR/NR absolute maximum ratings: (1)ESD capability: 8kV; (2)peak votlage: 500V typical; (3)clamping voltage (typical): 150V; (4)rated voltage (maximum): 24VDC; (5)capacitance (typical): 0.06pF; (6)response time: <1ns; (7)leakage current (typical): <1nA; (8)ESD pulse withstand: 1000 pulses min.

Features

PGB1010603MR/NR features: (1)RoHS compliant, lead-free and available halogen-free; (2)ultra-low capacitance; (3)low leakage current; (4)fast response time; (5)Bi-directional; (6)withstands multiple ESD strikes; (7)compatible with pick-and-place processes; (8)available in 1000, 3000, 5000 and 10000 piece reels (EIA-RS481).

Diagrams

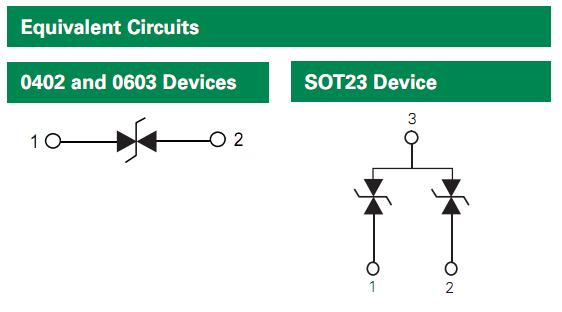

PGB1010603MR/NR equivalent circuit
