Product Summary
The M57962AL-01 is an IGBT gate driver designed for driving n-channel IGBT modules in any gate-amplifier application. The M57962AL-01 operates as an isolation amplifier for these modules and provides the required electrical isolation between the input and output with an opto-coupler.
Parametrics
M57962AL-01 absolute maximum ratings: (1) VI Input voltage Applied between; 13pin and 14pin: -1 ~ +7 V; (2) VO Output voltage When the output voltage is H : VCC V; (3) Viso Isolation voltage Sine wave voltage 60Hz, for 1min: 2500 Vrms; (4) TC Case temperature: 85 °C; (5) Topr Operating temperature No condensation allowable: -20 ~ +60 °C; (6) Tstg Storage temperature No condensation allowable: -25 ~ +100 (*1) °C; (7) IFO Fault output current Applied 8pin: 20 mA; (8) VR1 Input voltage Applied 1pin: 50 V.
Features
M57962AL-01 features: (1) Electrical isolation between input and output with opto-coupler; (2)(Viso = 2500Vrms for 1minute); (3) Two supply driver topology; (4) Built-in short circuit protection circuit (With a pin for fault out); (5) TTL compatible input interface.

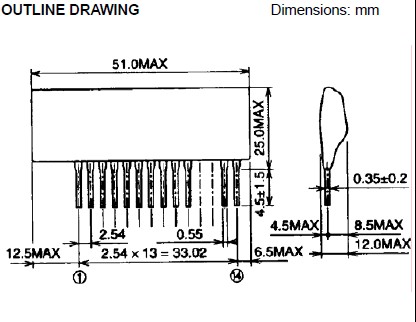

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

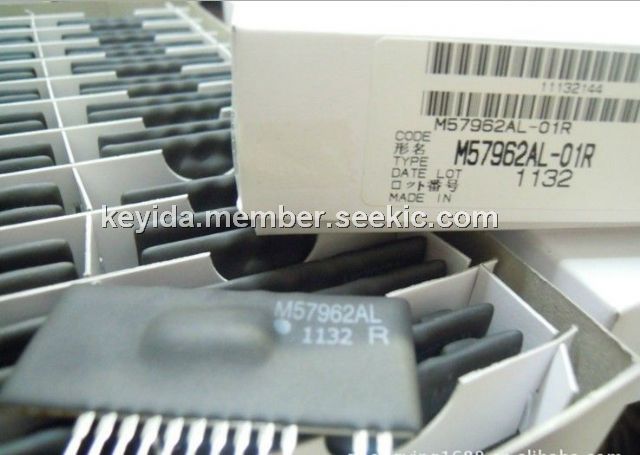

 M57962AL-01R |
Other |
|
Data Sheet |
Negotiable |
|
||||
