Product Summary
| Core Processor | ARM7? |
|---|---|
| Core Size | 16/32-Bit |
| Speed | 60MHz |
| Connectivity | I2C, Microwire, SPI, SSI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V |
| Data Converters | A/D 16x10b; D/A 1x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 64-LQFP |
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

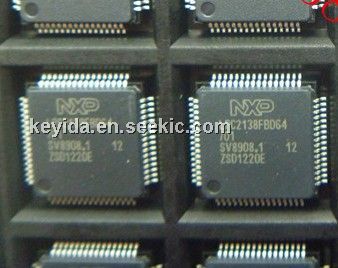

 LPC2138FBD64/01,11 |
NXP Semiconductors |
ARM Microcontrollers (MCU) 512K FL/32K RAM 10BIT ADC/DAC |
Data Sheet |
|
|
||||||||||||
 |
LPC2138FBD64/01,15 |
NXP Semiconductors |
ARM Microcontrollers (MCU) ARM7 512KF/32KR/ADC |
Data Sheet |
|
|
||||||||||||
