Product Summary

PIN DESCRIPTION
A0 - A14 - Address Inputs
DQ0 - DQ7 - Data In/Data Out
CE - Chip Enable
WE - Write Enable
OE - Output Enable
VCC - Power (+5V)
GND - Ground
NC -11/10

Features

刋 10 years minimum data retention in the absence of external power
刋 Data is automatically protected during power loss
刋 Replaces 32k x 8 volatile static RAM, EEPROM or Flash memory
刋 Unlimited write cycles
刋 Low-power CMOS
刋 Read and write access times of 70 ns
刋 Lithium energy source is electrically disconnected to retain freshness until power is applied for the first time
刋 Full ∮10% VCC operating range (DS1230Y)
刋 Optional ∮5% VCC operating range (DS1230AB)
刋 Optional industrial temperature range of -40C to +85C, designated IND
刋 JEDEC standard 28-pin DIP package

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

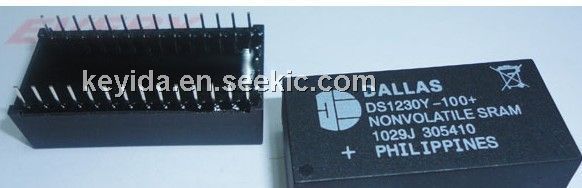

DS1230Y-100+
DS1230Y-100+

Maxim Integrated Products

NVRAM 256k Nonvolatile SRAM

Data Sheet

0-1: $20.09
1-25: $13.49
25-50: $9.77
50-100: $9.66
