Product Summary

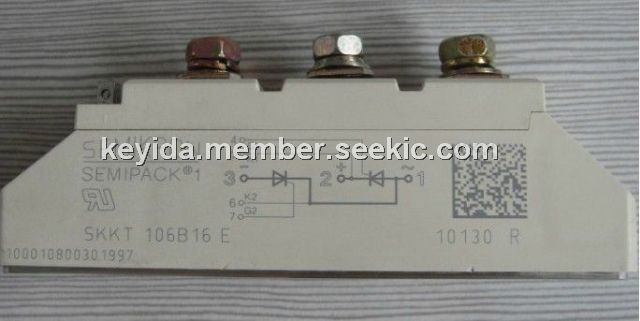

The SKKT106B/16E is a thyristor. The applications of the SKKT106B/16E include DC motor control (e.g. for machine tools), AC motor soft starters, temperature control (e.g. for ovens, chemical processes), professional light dimming (studios, theaters).
Parametrics
SKKT106B/16E absolute maximum ratings: (1)sin. 180; Tcase= 85(100)℃, ITAV: 106(78)A; B2/B6 Tamb= 35℃; P 3/180F, ID: 145 / 180A; Tamb= 35℃; P 16/200 F, ID: 190/ 260A; (2)Tvj= 25℃; 10 ms, ITSM: 2250A; Tvj= 130℃; 10 ms, ITSM: 1900A; Tvj= 25℃; 8,3 to 10 ms, i2t: 25000A2s ; Tvj= 130℃; 8,3 to 10 ms, i2t: 18000A2s; (3)Tvj= 25℃; IT= 300A,VT: max.1.65V; Tvj= 130℃, VT(TO): max.0.9V; Tvj= 130℃,rT: max.2mΩ; Tvj= 130℃; VRD=VRRM; VDD=VDR, IDD;IRD: max.20mA; (4)Tvj= 25℃; IG= 1A;diG/dt= 1 A/μs, tgd: 1μs; VD= 0,67 VDRM, tgr: 2μs; (5)Tvj= 130℃, (di/dt)cr: max.150A/μs; Tvj= 130℃, (di/dt)cr: max.1000A/μs; Tvj= 130℃, tq: 100μs; Tvj= 25℃;typ./max., LH:150/250mA; Tvj= 25℃; RG=33Ω; typ./max., IL:300/600mA; (6)Tvj= 25℃; d.c., VGT: min.3V; Tvj= 25℃; d.c., IGT: min.150mA; Tvj= 125℃; d.c., VGD: max.0.25V; Tvj= 125℃; d.c., IGD: max.6mA.
Features
SKKT106B/16E features: (1)Heat transsfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no.E63532.
