Product Summary

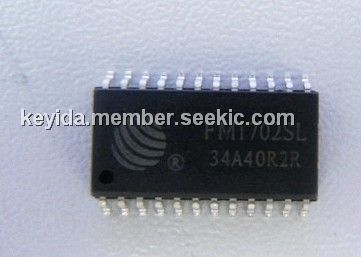

The FM1702SL is a common serial reader IC for contactless communications based on ISO14443. It takes 0.6μm CMOS EEPROM processing technology. The FM1702SL supports all layers of ISO14443 typeA and ISO15693 on 13.56MHz. M1 and SH security arithmetic are both supported. The FM1702SL internal highly integrated analog circuitry for modulating/demodulating and thus it can work with the least peripheral circuitry.

Parametrics

FM1702SL absolute maximum ratings: (1)Tamb,ab, Ambient or storage temperature range: -40 to +150℃; (2)DVDD/AVDD/TVDD, DC supply voltage: -0.5 to 6V; (3)Vin,abs, Absolute voltage on any digital pin to DVSS: 0.5 to DVDD +0.5V; (4)VRX,abs, Absolute voltage on RX pin to AVSS: -0.5 to AVDD +0.5V.

Features

FM1702SL features: (1)Highly integrated analog circuitry for modulate/demodulate, only require the least peripheral circuitry; (2)Proximity operating distance(up to 100mm, depend on the antenna); (3)Supports ISO14443 typeA protocol; (4)Supports ISO15693 protocol; (5)512 byte EEPROM; (6)Support M1 and SH security arithmetic; (7)Support six types of μ-processor interface; (8)63 byte FIFO; (9)Two voltage operation modes of digital module: TTL/CMOS; (10)Support standby/Soft power down mode.

Diagrams

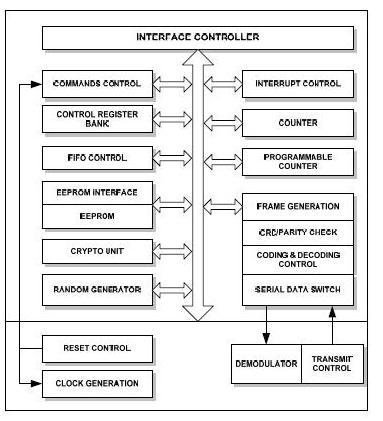

FM1702SL block diagram
