Product Summary

The FF100R12KS4 is a 62mm IGBT module with the fast IGBT2 for high-frequency switching. Applications of the FF100R12KS4 are: (1)High frequency switching application; (2)Medical applications; (3)Motor drives.

Parametrics

FF100R12KS4 absolute maximum ratings: (1)collector emitter volatge: 1200V; (2)DC-collector current: 150A; (3)repetitive peak collector current: 200A; (4)total power dissipation: 780W; (5)gate-emitter peak volatge: 20V.

Features

FF100R12KS4 features: (1)Low switching losses; (2)unbeatable robustness; (3)Isolated base plate; (4)Copper base plate; (5)standard housing.

Diagrams

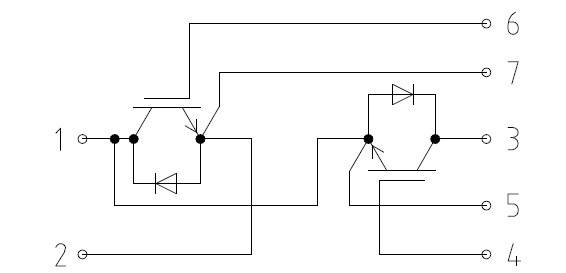

FF100R12KS4 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FF100R12KS4
FF100R12KS4
Infineon Technologies
IGBT Modules 1200V 100A DUAL
Data Sheet
0-6: $68.26
6-10: $61.43
