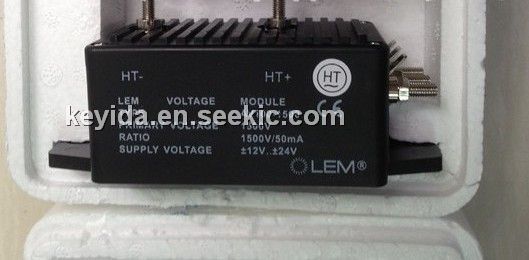

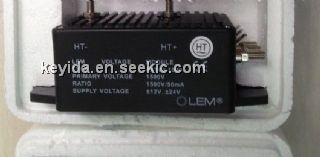

Product Summary

The AV100-1500 is a Voltage Transducer. The applications of the device include AC variable speed drives and servo motor drives, Static converters for DC motor drives, Battery supplied applications, Uninterruptible Power Supplies (UPS) and Power supplies for welding applications.

Parametrics

AV100-1500 absolute maximum ratings: (1)VPN: 1500V; (2)VPmax: ±2250V; (3)Vd: 6.5kV; (4)Vp, not measurable overload: 2×Vpmax; (5)Rm, measuring resistance: 0 to 47Ω; (6)Isn, secondary nominal rms current: 50mA; (7)Ic, current consumption: 50+Is mA.

Features

AV100-1500 features: (1)Insulated plastic case recognized according to UL 94-V0.; (2)Included primary resistor.

Diagrams

AV100-1500 dimensions
