Product Summary

The AT26DF081A-SU is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer-based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the AT26DF081A-SU, with its erase granularity as small as 4 Kbytes, makes it ideal for data storage as well, eliminating the need for additional data storage EEPROM devices. The AT26DF081A-SU also offers a sophisticated method for protecting individual sectors against erroneous or malicious program and erase operations.

Parametrics

AT26DF081A-SU absolute maximum ratings: (1)Temperature under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages(including NC Pins)with Respect to Ground: -0.6V to +4.1V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.5V.

Features

AT26DF081A-SU features: (1)Single 2.7V - 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible: Supports SPI Modes 0 and 3; (3)70 MHz Maximum Clock Frequency; (4)Individual Sector Protection for Program/Erase Protection; (5)Hardware Controlled Locking of Protected Sectors; (6)JEDEC Standard Manufacturer and Device ID Read Methodology; (7)Low Power Dissipation: 7 mA Active Read Current (Typical); 11μA Deep Power-down Current (Typical); (8)Endurance: 100,000 Program/Erase Cycles; (9)Data Retention: 20 Years; (10)Complies with Full Industrial Temperature Range; (11)Industry Standard Green (Pb/Halide-free/RoHS Compliant) Package Options: 8-lead SOIC (150-mil and 200-mil wide).

Diagrams

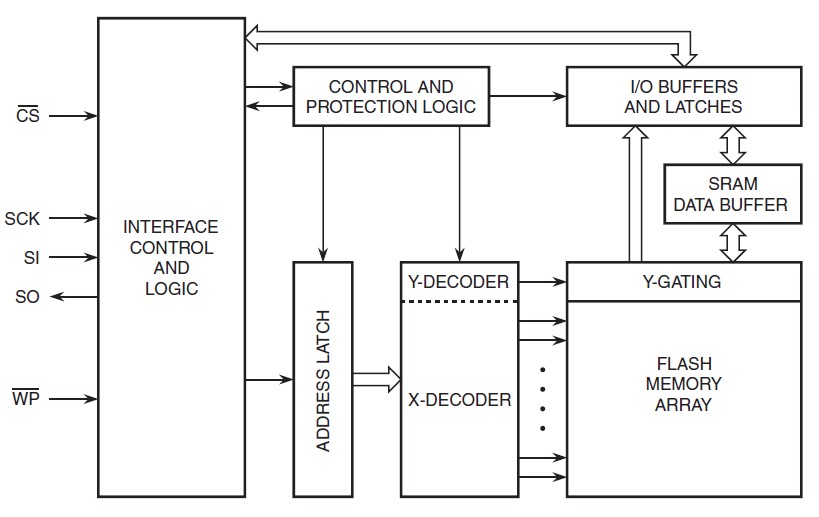

AT26DF081A-SU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

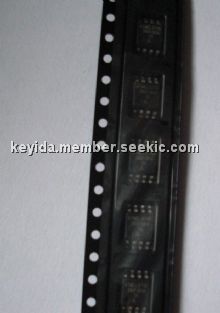

AT26DF081A-SU
AT26DF081A-SU

Atmel

Flash 8M 8 I/O Pins SPI 256B 2.7V-3.6V

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT26DF081A-MU
AT26DF081A-MU


IC FLASH 8MBIT 70MHZ 8SOIC

Data Sheet

Negotiable
AT26DF081A-SSU
AT26DF081A-SSU

Atmel

Flash 8M SERIAL FLASH - IND TEMP

Data Sheet

Negotiable
AT26DF081A-SU
AT26DF081A-SU

Atmel

Flash 8M 8 I/O Pins SPI 256B 2.7V-3.6V

Data Sheet

Negotiable
AT26DF161
AT26DF161

Other


Data Sheet

Negotiable
AT26DF161A-MU
AT26DF161A-MU

Atmel

Flash 16M SERIAL FLASH - IND TEMP

Data Sheet

Negotiable
AT26DF161A-SSU
AT26DF161A-SSU

Atmel

Flash 16M SERIAL FLASH - IND TEMP

Data Sheet

Negotiable
