Product Summary

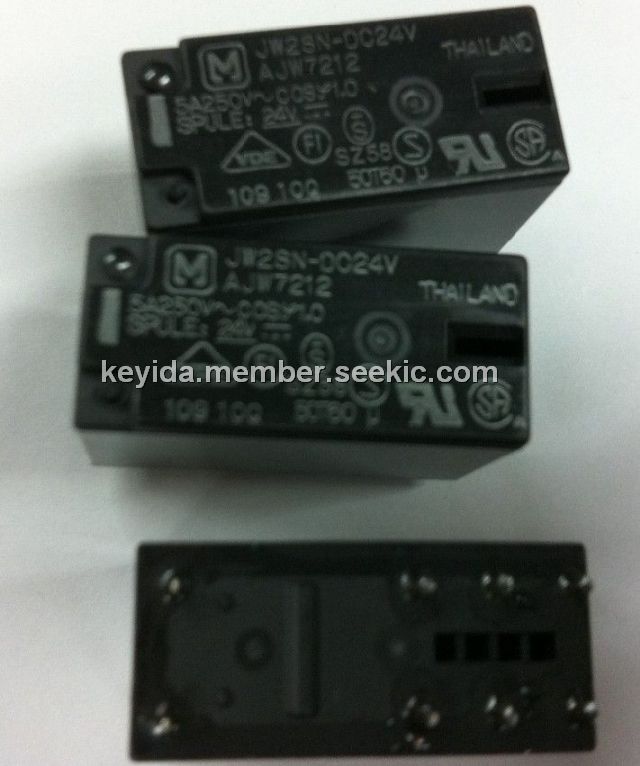

The JW2SN-DC24V is a compact PC board power relay.

Parametrics

JW2SN-DC24V absolute maximum ratings: (1)Nominal switching capacity: 5 A 250 V AC, 5 A 30 V DC; (2)Max. switching power: 1,250 VA, 150 W; (3)Max. switching voltage: 250 V AC, 30 V DC; (4)Max. switching current: 5 A; (5)Min. switching capacity: 100 mA, 5 V DC.

Features

JW2SN-DC24V features: (1)Miniature package with universal terminal footprint; (2)High dielectric withstanding for transient protection: 10,000 V surge in μs between coil and contact; (3)Sealed construction; (4)Class B coil insulation types available; (5)TV rated (TV-5) types available (only for 1 Form A type); (6)VDE, TUV, SEMKO, SEV, FIMKO, TV-5 also approved.

Diagrams

JW2SN-DC24V wiring diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
JW2SN-DC24V
JW2SN-DC24V

Panasonic Electric Works

General Purpose / Industrial Relays 5A 24VDC DPDT SEALED PCB

Data Sheet

0-1: $2.38
1-25: $2.19
25-50: $1.97
50-100: $1.67
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
JW2SN-B-DC12V
JW2SN-B-DC12V

Panasonic Electric Works

General Purpose / Industrial Relays 5A 12VDC DPDT CLASS B SEALED PCB

Data Sheet

0-1: $1.96
1-25: $1.79
25-50: $1.60
50-100: $1.48
JW2SN-B-DC18V
JW2SN-B-DC18V

Panasonic Electric Works

General Purpose / Industrial Relays 2 Form C 10A 250VAC 18V

Data Sheet

0-1: $2.11
1-25: $1.93
25-50: $1.73
50-100: $1.46
JW2SN-B-DC24V
JW2SN-B-DC24V

Panasonic Electric Works

General Purpose / Industrial Relays 5A 24VDC DPDT CLASS B SEALED PCB

Data Sheet

0-1: $2.44
1-25: $2.24
25-50: $1.99
50-100: $1.69
JW2SN-B-DC48V
JW2SN-B-DC48V

Panasonic Electric Works

General Purpose / Industrial Relays 2 Form C 10A 250VAC 48V

Data Sheet

0-1: $2.43
1-25: $2.23
25-50: $1.99
50-100: $1.69
JW2SN-B-DC5V
JW2SN-B-DC5V

Panasonic Electric Works

General Purpose / Industrial Relays 2 Form C 10A 250VAC 5V

Data Sheet

0-1: $2.35
1-25: $2.15
25-50: $1.92
50-100: $1.63
JW2SN-B-DC6V
JW2SN-B-DC6V

Panasonic Electric Works

General Purpose / Industrial Relays 2 Form C 10A 250VAC 6V

Data Sheet

0-1: $2.35
1-25: $2.15
25-50: $1.92
50-100: $1.63
