Product Summary

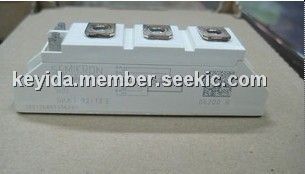

The SKKT92/12E is a semipack1 thyristor. The applications of the SKKT92/12E include DC motor control (e.g. for machine tools), AC motor soft starters, temperature control (e.g. for ovens, chemical processes), professional light dimming (studios, theaters).
Parametrics
SKKT92/12E absolute maximum ratings: (1)sin. 180; Tcase= 85℃, ITAV: 95A; B2/B6 Tamb= 45℃; P 3/180, ID: 70 / 85A; Tamb= 35℃; P 3/180 F, ID: 140/ 175A; (2)Tvj= 25℃; 10 ms, ITSM: 2000A; Tvj= 125℃; 10 ms, ITSM: 1750A; Tvj= 25℃; 8,3 to 10 ms, i2t: 20000A2s ; Tvj= 125℃; 8,3 to 10 ms, i2t: 15000A2s; (3)Tvj= 25℃; IG= 1 A;diG/dt= 1 A/ms, tgd: 1μs; VD= 0,67 . VDRM, tgr: 2μs; (4)Tvj= 125℃, (di/dt)cr: 150A/μs; Tvj= 125℃, tq: typ. 100μs; Tvj= 25℃; max., IH: 250mA; Tvj= 25℃; RG = 33Ω; max., IL: 600mA; (5)Tvj= 25℃; IT = 300 A, VT: max. 1,65V; Tvj= 125℃, VT(TO): 0.9V; Tvj= 125℃, rT: 2mΩ; Tvj= 125℃; VRD= VRRM, VDD= VDRM, IDD; IRD: max. 20mA; (6)Tvj= 25℃; d.c., VGT: 3V; Tvj= 25℃; d.c., IGT: 150mA; Tvj= 125℃; d.c., VGD: 0.25V; Tvj= 125℃; d.c., IGD: 6mA.
Features
SKKT92/12E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E 63 532.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKKT92/12E |
Other |
|
Data Sheet |
Negotiable |
|
||||
