Product Summary

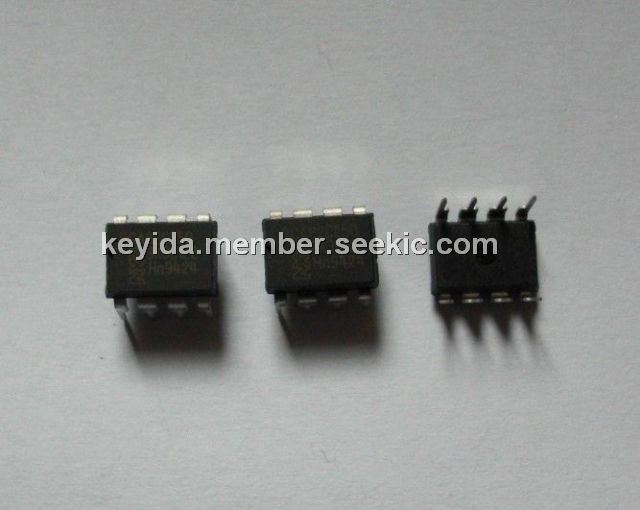

The PCA82C250N is a CAN controller interface. It is the interface between the CAN protocol controller and the physical bus. The PCA82C250N provides differential transmit capability to the bus and differential receive capability to the CAN controller. It is designed for High-speed applications (up to 1 Mbaud) in cars.

Parametrics

PCA82C250N absolute maximum ratings: (1)VCC supply voltage: -0.3 to +9.0 V; (2)Vn DC voltage at pins 1, 4, 5 and 8: -0.3 to VCC + 0.3 V; (3)V6, 7 DC voltage at pins 6 and 7: -8.0 to +18.0 V; (4)Vtrt transient voltage at pins 6 and 7: -150 to +100 V; (5)Tstg storage temperature: -55 to +150 ℃; (6)Tamb ambient temperature: -40 to +125 ℃; (7)Tvj virtual junction temperature: -40 to +150 ℃; (8)Vesd electrostatic discharge voltage: -2000 to +2000 V.

Features

PCA82C250N features: (1)Fully compatible with the ISO 11898 standard; (2)High speed (up to 1 Mbaud); (3)Bus lines protected against transients in an automotive environment; (4)Slope control to reduce Radio Frequency Interference(RFI); (5)Differential receiver with wide common-mode range for high immunity against ElectroMagnetic Interference(EMI); (6)Thermally protected; (7)Short-circuit proof to battery and ground.

Diagrams

PCA82C250N block diagram
